Digital Inkjet Lable Press-Yintech Technology Co.,Ltd.

Digital Label Printer Series Products

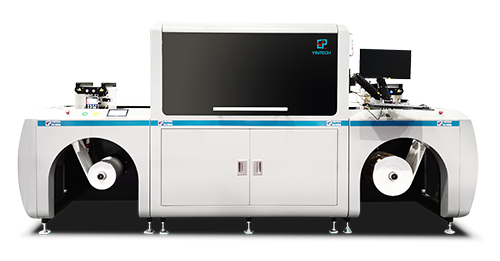

Digital Inkjet Lable Press

京瓷五色喷头，Single-Pass技术，六色UV墨水，多种介质打印

新一代进口高精度工业喷头，最高分辨率达600×1200dpi，增强了联系、高速、高质量打印的稳定性，色阶过度更加自然，可实现高清细腻、色彩逼真的印刷质量。

Digital Inkjet Lable Press

Product Details

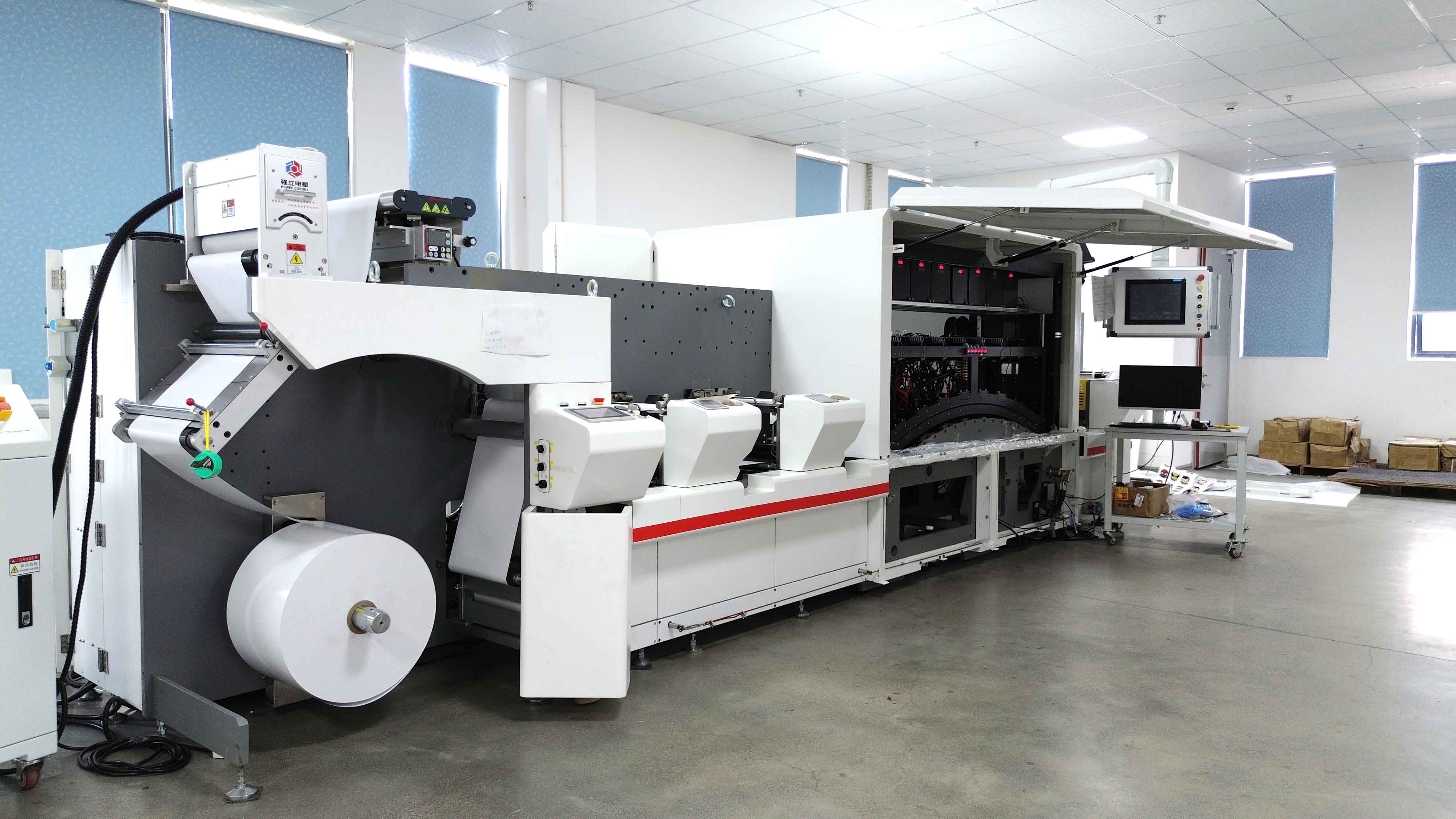

数码标签机侧面照 (4) 拷贝

Technical Parameters

Technology

Color option
CMYK, white, vanish and panton (option)
Resolution
600x600dpi 600x1200dpi
Max. printing speed
DILP330 60m/min DILP220 30m/min
Inkjet head
Drop-on-Demand piezoelectric nozzle
Printing style
Single side
Ink type
UV ink
Drying
LED UV Lamp
Operation interface
Visual simple Ul interface
Paper

Max. media width
DILP330 350mm DILP2200 216mm
Max. printing width
DILP330 325mm DILP2200 216mm
Media thickness
0.02- 0.35mm
Media type
PET/PVC/PP/PE/BOPP and other Mono Film Materials
Max. roll diameter
800mm
Power

Mechanical platform
three phase : AC380V, 50-60HZ Maximum power) : 20KW
Digital control system
Max.8KW
Environment

Compress air
0.6-0.8Mpa
Temperature
Range 20-30°C Best working temperature 22.5-27.5°C
Humidity
Range 40-60%RH No condensation
Size & Weight
Size: 4200x1660x1920mm weight: 3000KG
Components

Standard Optional

Automatic deviation system
Tension detection
Corona detection system
Dust removal system
Roll diameter detection
Flexographic printing unit
Laminating unit
Intermittent die-cutting unit
Foil stamping unit
Die cutting
Snowball waste disposal unit
