Epson Printhead Full Color Rotary Inkjet Digital Printing Maching（Economical-Yintech Technology Co.,Ltd.

Digital Printing Machine serie

Epson Printhead Full Color Rotary Inkjet Digital Printing Maching（Economical

爱普生喷头，水性颜料墨水，红外烘干，可视化操作界面

设备搭载高精度按需式压电喷头，经久耐用，支持24小时全天候生产，支持铜版纸打印。

爱普森喷头高清彩色喷墨轮转数码印刷机（经济款）透明底

Product Details

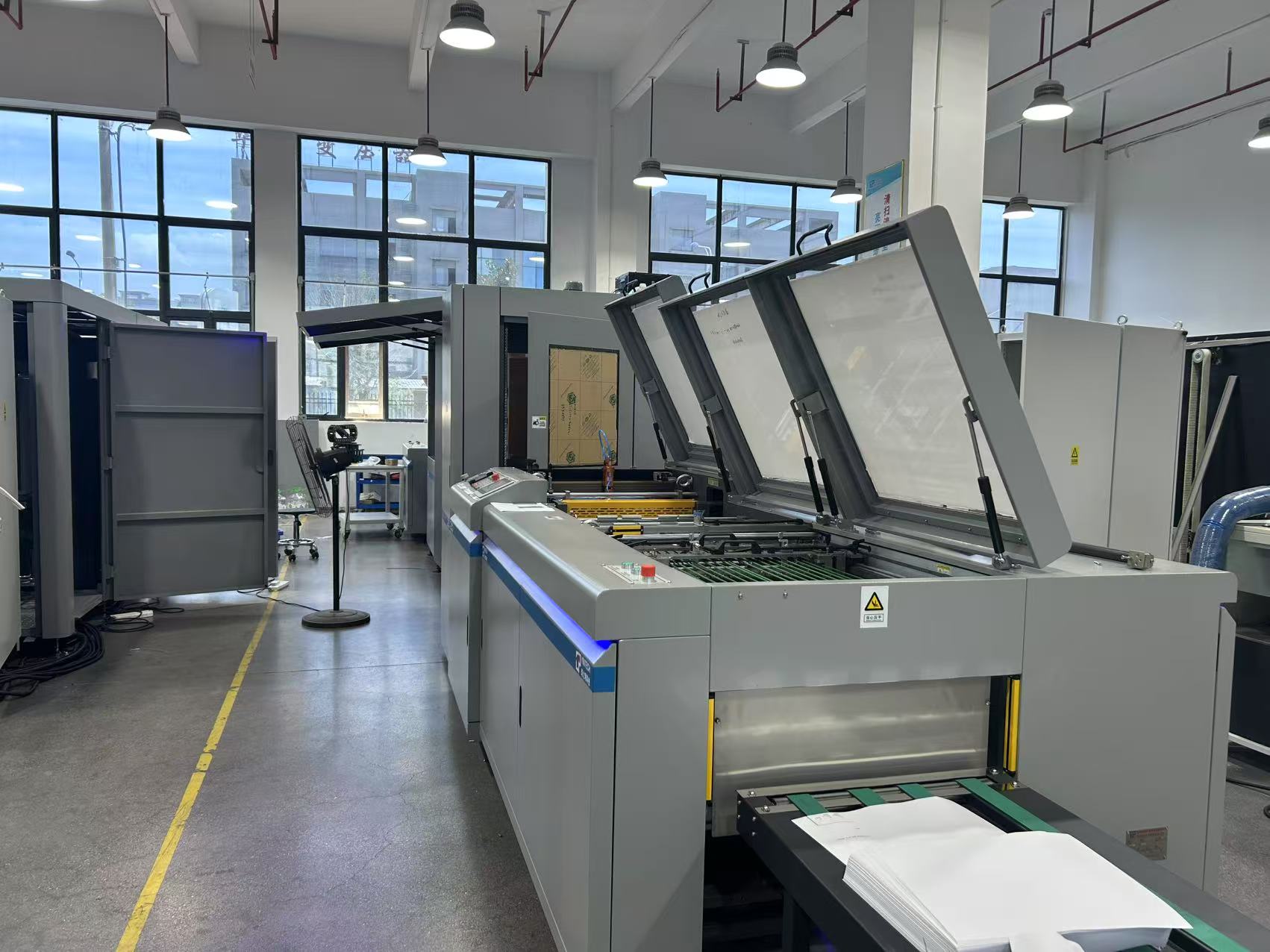

爱普森喷头高清单色、双色、四色实物图 (1)

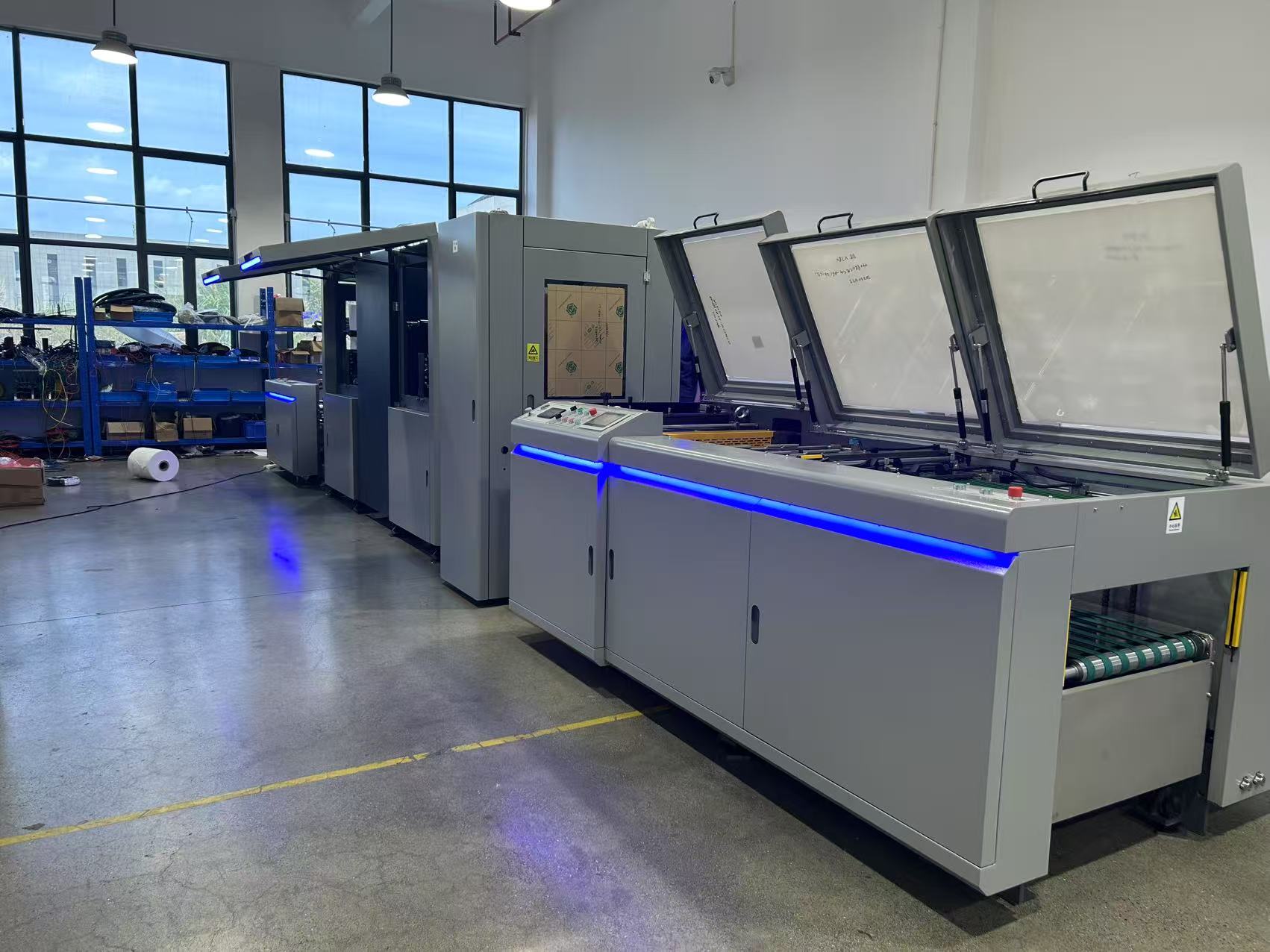

爱普森喷头高清单色、双色、四色实物图 (2)

爱普森喷头高清单色、双色、四色实物图 (3)

Technical Parameters

Technology

Printing style
CMYK duplex Dual-color duplex
Resolution
600x600dpi/600×800dpi/600x1200dpi（DPM440CIC） 1200x600dpi/1200x800dpi/1200x1200dpi（DPM440CI） 1200x600dpi/1200x800dpi/1200x1200dpi（DPM440CI-S）
Max. printing speed
600x600dpim/min 1200x600dpim/min
CMYK registration
±0.08mm
Front-back registration
±0.1mm
Inkjet head
Drop-on-Demand piezoelectric nozzle
Ink type
Water based pigment ink
Drying
Infrared drying (full automatic adjustment on printing speed)
Operation interface
Visual operation interface
Paper

Max. media width
440mm
Max. printing width
432mm
Media thickness
45-165(g/㎡)
Media thickness
Digital printing paper, offset paper, inkjet coated paper, newsprint, etc.
Max. roll diameter
1.27m
Power

Mechanical platform
Max.20KW
Infrared drying
Max.40KW
Digital control system
Max.8KW
Environment

Temperature
Range 22.5-27.5°C Best working temperature 25°C
Humidity
Range 40-70% Best working temperature 50-60%RH
Size & Weight
Size:11000x3500x2200mm weight:9750KG
Components

Standard Optional

Decoiling system
Paper dust removal system
Printing main unit
High effciency temperaturecontrol system
Nozzle compensation
Paper positioning system
Anti-static system
Cut stacked system
Winding system
Image detection system
